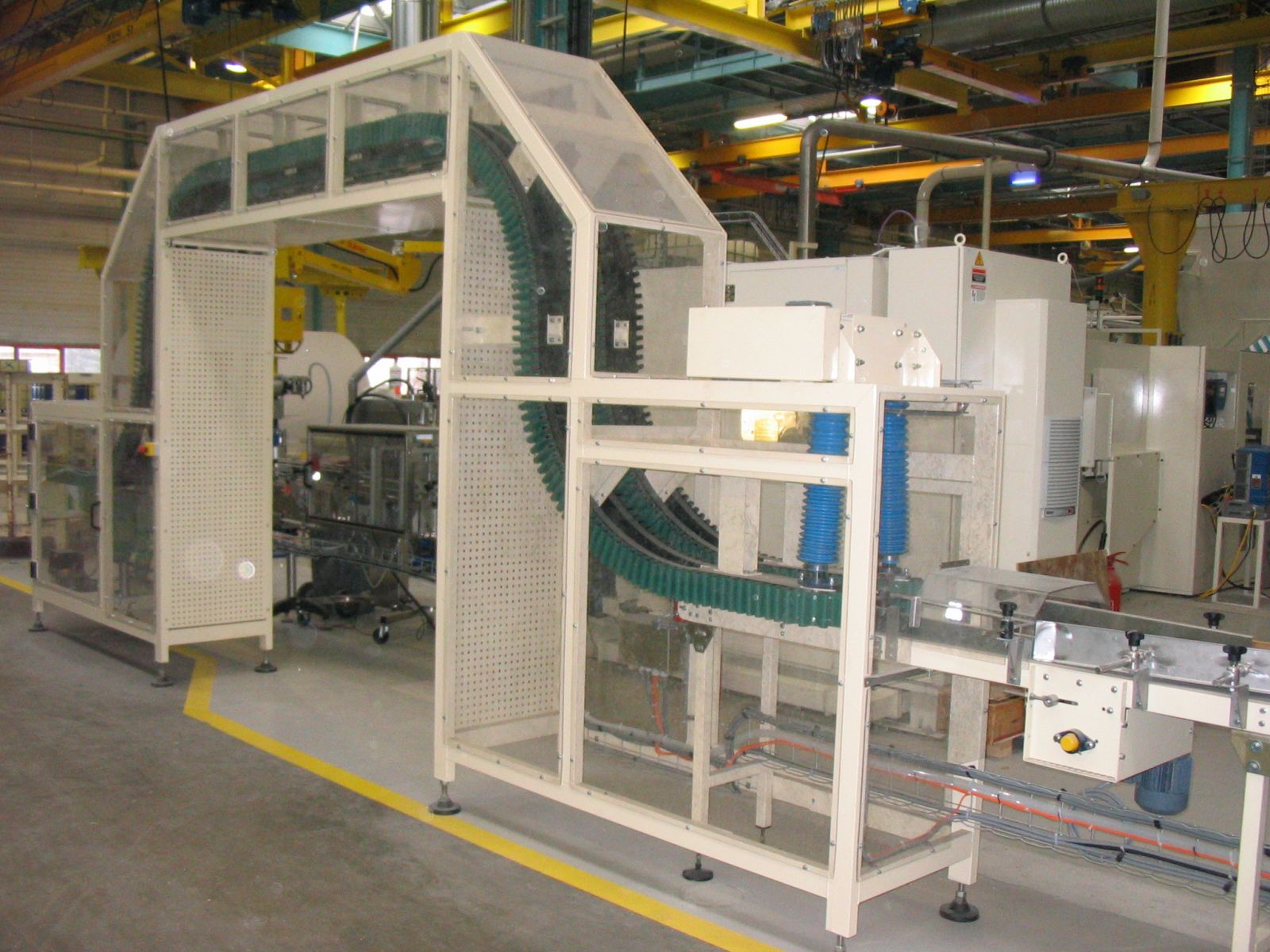

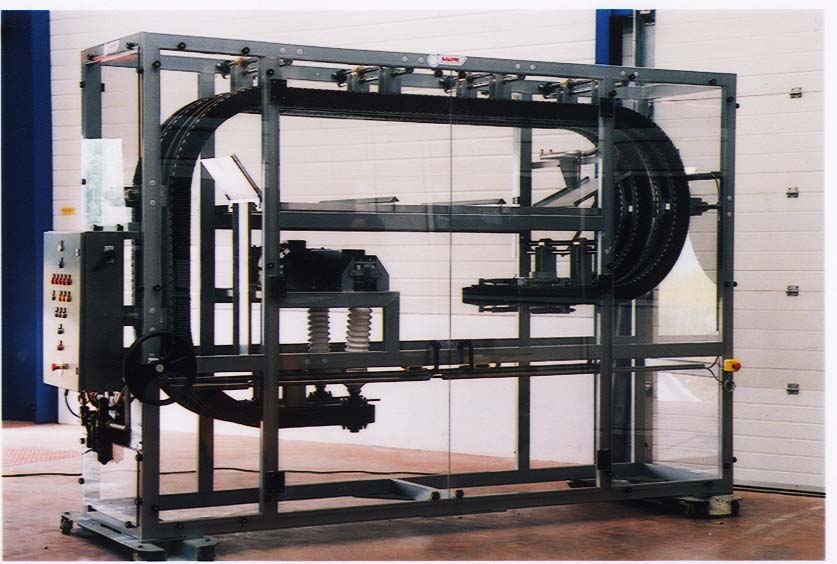

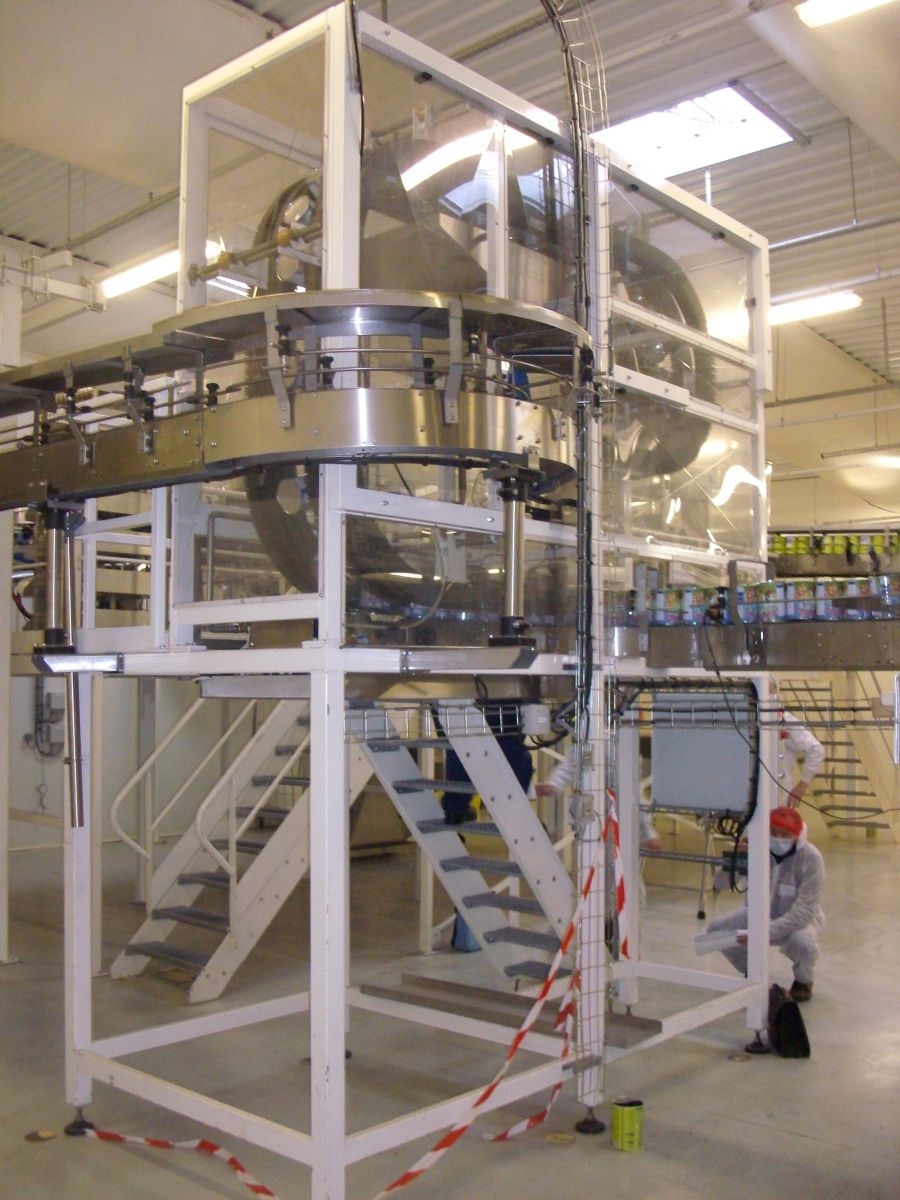

Side gripping elevator
Side gripping elevator
Technical Characteristics:
- Painted steel or stainless steel material 304
- Chassis in 80×40 tube or open profile (optional)
- Fixing and tensioning bracket made of thick sheet metal5
- Transfer speed: 80m/min. maximum (lubrication is required above 40m/min.)
- Single-format system or adjustment of the different formats via handwheel/screw, step left/step right
- A single geared motor
- Gripping by waves or pads on thermoplastic paddle chain in acetal with 19.05 mm pitch traction chain
- Chain slide made of high density polyethylene profile (HDPE 1000) lubrication by cartridge (SKF type) or automatic unit (optional)
- Stainless steel and Makrolon sheet metal casing thickness 8 mm with access doors and opening detectors.
Function :

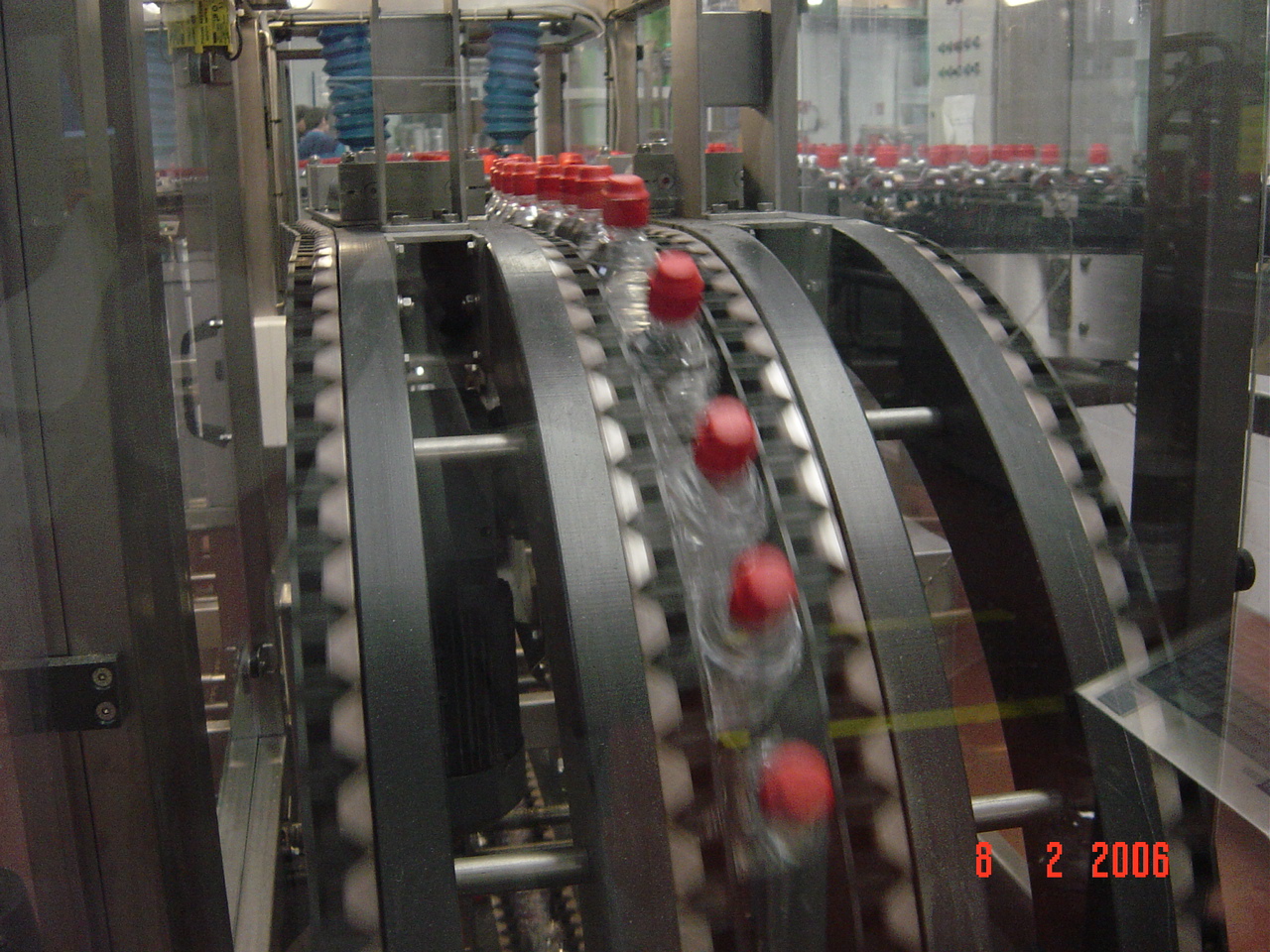

Allows the continuous lifting, lowering and turning of products of all shapes and sizes.
When a passageway needs to be created in an aisle, rinsing or blowing.
